Measure the following |
|

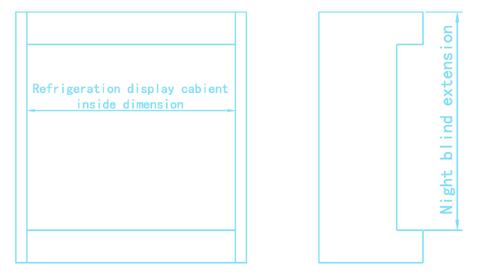

1.The inside of the refrigeration display cabinet(for the night blind pin length) |
| 2.The headroom of the refrigeration display cabinet(for the night blind extension) |
| 3.The motor or coupling side left/right |

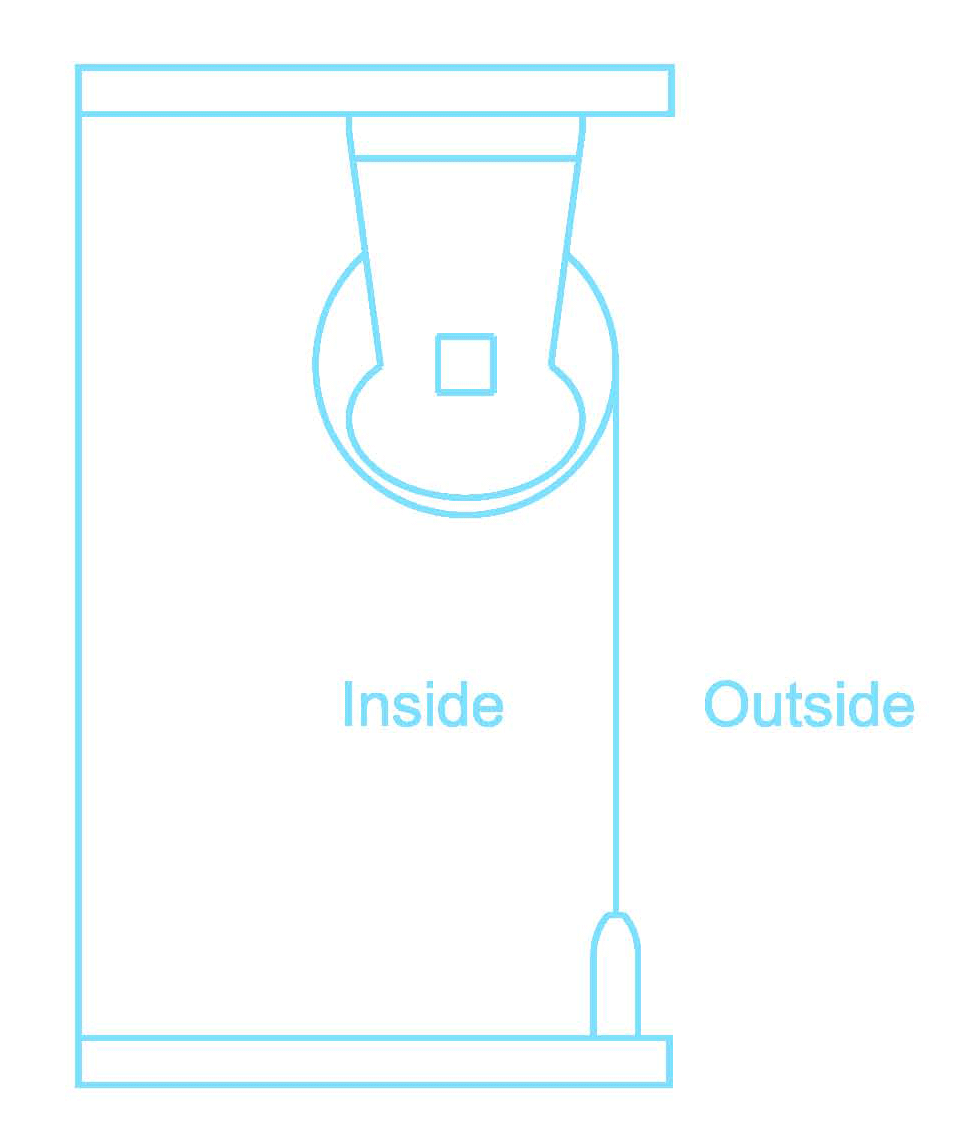

| 4.The unwinding side inside/outside |
|
|
|
|
Determining the Pin length |
|

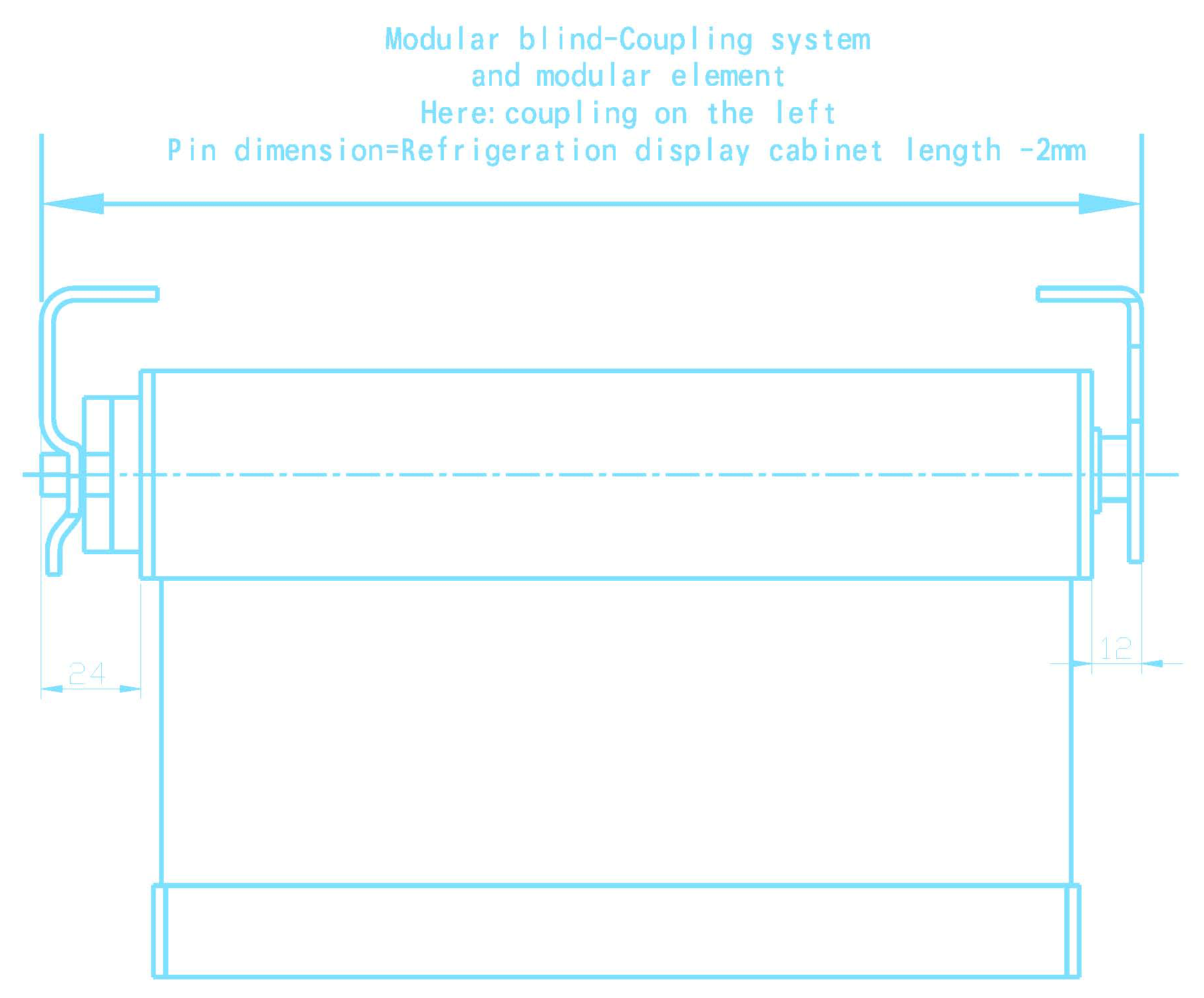

Inside of the refrigerationdisplay cabinet÷No. of night blinds-2mm tolerance=Night blind pin length |
e.g：3750-2mm=3748mm pin length |

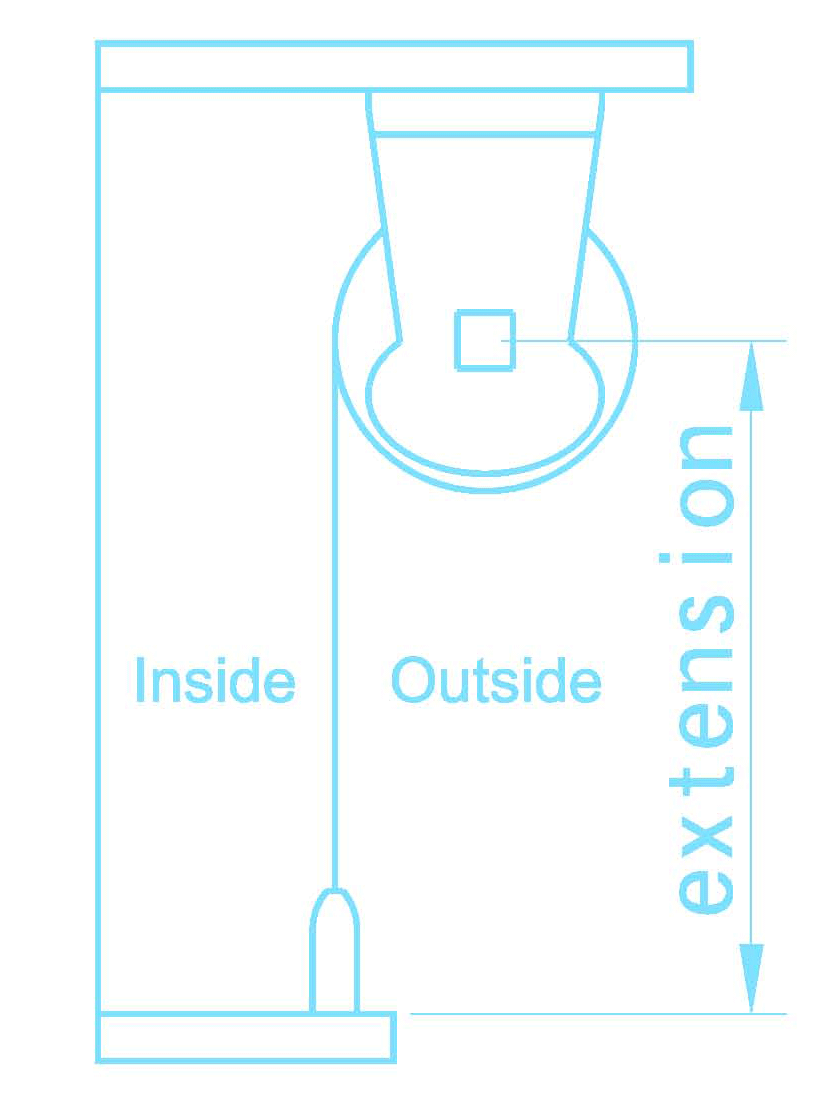

Determiniing the required extension: |
|
Upper edge of the top of the cabinet to the end upper edge of the base
|
| |
  |
|
| |
