Product demonstration |
|
 |
| |
|
Standard size |
|
Width(pin) to mm Width |
Extension to mm Length |
1000 |
1200 |
1250 |
1200 |
1500 |
1200 |
1875 |
1200 |
2000 |
1200 |
|
Max.pin dimension for hand-operated night blinds in cassette:2000mm |
| special sizes on request |
Measure the following |
|
1.The length of the central divider(for the night blind pin length) |
2.The width of the cabinet(for the night blind extension) |
 |

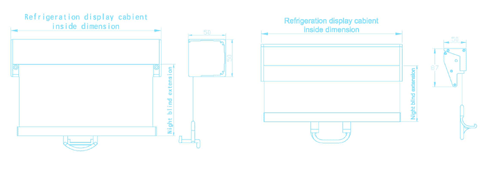

Determining the pin length(=external dimensions of the cassette) |
|
Inside of the refrigeration display cabinet ÷
No. of night blinds-2mm tolerance=Night blind pin length |
e.g.：3750÷hand night blinds2=1875mm-2mm=1873mm pin length |
Determining the required extension: |
|
Half the width of the cabinet from the central divider to the hard rail+150mm protective coil |
e.g.:width 1000mm+150mm protective coil=1150 extension |
| |
