Product demonstration |
|
 |
| |
|
Standard size |
|
Width(pin) to mm Width |
Extension to mm Length |
Extension to mm Length |
1000 |
1700 |
2000 |
1250 |
1700 |
2000 |
1500 |
1700 |
2000 |
1875 |
1700 |
2000 |
2000 |
1700 |
2000 |
2500 |
1700 |
2000 |
|
| |

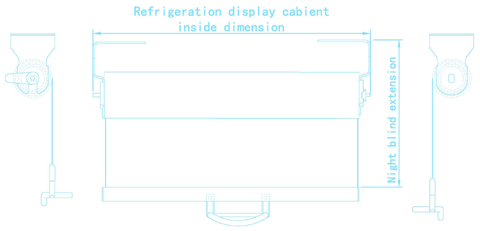

Measure the following |
|
1.The inside of the refrigeration display cabinet(for the night blind pin length) |
2.The headroom of the refrigeration display cabinet(for the night blind extension) |
 |
Determining the Pin length |
|
Inside of the refrigerationdisplay cabinet÷No. of night blinds-2mm tolerance=Night blind pin length |
e.g：3750÷hand night blinds=1875mm-2mm=1873mm pin length |
Determiniing the required extension: |
|
Upper edge of the top of the cabinet to the end upper edge of the base+150mm protective coil
|
| |
 |
e.g.:height 1700mm+150mm protective coil=1850 extension |
| |
